In this paper, we present a novel semi-analytical boundary handling method for spatially adaptive and divergence-free smoothed particle hydrodynamics (SPH) simulations, including two-way coupling. Our method is consistent under varying particle resolutions and allows for the treatment of boundary features below the particle resolution. We achieve this by first introducing an analytic solution to the interaction of SPH particles with planar boundaries, in 2D and 3D, which we extend to arbitrary boundary geometries using signed distance fields (SDF) to construct locally planar boundaries. Using this boundary-integral-based approach, we can directly evaluate boundary contributions, for any quantity, allowing an easy integration into state of the art simulation methods. Overall, our method improves interactions with small boundary features, readily handles spatially adaptive fluids, preserves particle-boundary interactions across varying resolutions, can directly be implemented in existing SPH methods, and, for non-adaptive simulations, provides a reduction in memory consumption as well as an up to 2× speedup relative to current particle-based boundary handling approaches.

Learning physical simulations has been an essential and central aspect of many recent research efforts in machine learning, particularly for Navier-Stokes-based fluid mechanics. Classic numerical solvers have traditionally been computationally expensive and challenging to use in inverse problems, whereas Neural solvers aim to address both concerns through machine learning. We propose a general formulation for continuous convolutions using separable basis functions as a superset of existing methods and evaluate a large set of basis functions in the context of (a) a compressible 1D SPH simulation, (b) a weakly compressible 2D SPH simulation, and (c) an incompressible 2D SPH Simulation. We demonstrate that even and odd symmetries included in the basis functions are key aspects of stability and accuracy. Our broad evaluation shows that Fourier-based continuous convolutions outperform all other architectures regarding accuracy and generalization. Finally, using these Fourier-based networks, we show that prior inductive biases, such as window functions, are no longer necessary. An implementation of our approach, as well as complete datasets and solver implementations, is available at https://github.com/tum-pbs/SFBC.

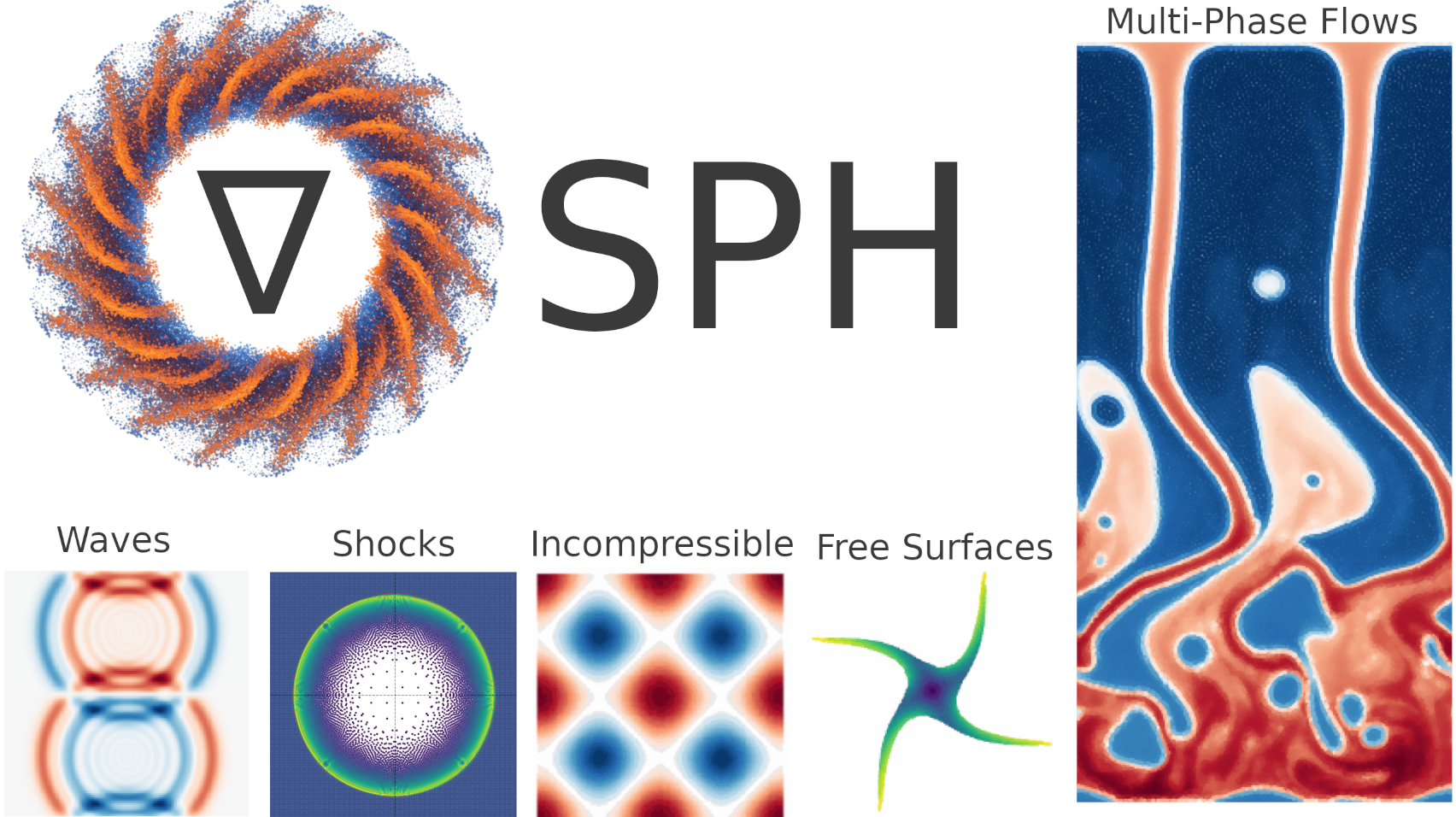

We present diffSPH, a novel open-source differentiable Smoothed Particle Hydrodynamics (SPH) framework developed entirely in PyTorch with GPU acceleration. diffSPH is designed centrally around differentiation to facilitate optimization and machine learning (ML) applications in Computational Fluid Dynamics (CFD), including training neural networks and the development of hybrid models. Its differentiable SPH core, and schemes for compressible (with shock capturing and multi-phase flows), weakly compressible (with boundary handling and free- surface flows), and incompressible physics, enable a broad range of application areas. We demonstrate the framework’s unique capabilities through several applications, including addressing particle shifting via a novel, target- oriented approach by minimizing physical and regularization loss terms, a task often intractable in traditional solvers. Further examples include optimizing initial conditions and physical parameters to match target trajectories, shape optimization, implementing a solver-in-the-loop setup to emulate higher-order integration, and demonstrating gradient propagation through hundreds of full simulation steps. Prioritizing readability, usability, and extensibility, this work offers a foundational platform for the CFD community to develop and deploy novel neural networks and adjoint optimization applications.

We present a fully analytic approach for evaluating boundary integrals in two dimensions for Smoothed Particle Hydrodynamics (SPH). Conventional methods often rely on boundary particles or wall re-normalization approaches derived from applying the divergence theorem, whereas our method directly evaluates the area integrals for SPH kernels and gradients over triangular boundaries. This direct integration strategy inherently accommodates higher-order boundary conditions, such as piecewise cubic fields defined via Finite Element stencils, enabling analytic and flexible coupling with mesh-based solvers. At the core of our approach is a general solution for compact polynomials of arbitrary degree over triangles by decomposing the boundary elements into elementary integrals that can be solved with closed-form solutions. We provide a complete, closed-form solution for these generalized integrals, derived by relating the angular components to Chebyshev polynomials and solving the resulting radial integral via a numerically stable evaluation of the Gaussian hypergeometric function _2F_1. Our solution is robust and adaptable and works regardless of triangle geometries and kernel functions. We validate the accuracy against high- precision numerical quadrature rules, as well as in problems with known exact solutions. We provide an open-source implementation of our general solution using differentiable programming to facilitate the adoption of our approach to SPH and other contexts that require analytic integration over polygonal domains. Our analytic solution outperforms existing numerical quadrature rules for this problem by up to five orders of magnitude, for integrals and their gradients, while providing a flexible framework to couple arbitrary triangular meshes analytically to Lagrangian schemes, building a strong foundation for addressing several grand challenges in SPH and beyond.
